External turning tools
External turningTop clamping

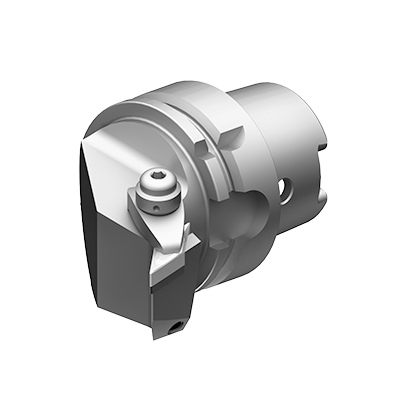

DVJN L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via double-clamping Type D
- Cooling system: Turning tools with double-clamping feature an adjustable high-pressure coolant nozzle
| Bestell-Nr. | HSK T | f | D1 min. | A | rechts/links | Wendeplatte | dxf | step |  |
|
| HA0.KVD.LJA.100 | 100 | 63 | - | 100 | L | VN . . 16 04 . . |  |
 |
 |
 |
| HA0.KVD.RJA.100 | 100 | 63 | - | 100 | R | VN . . 16 04 . . | |
|
|
|
