External turning tools

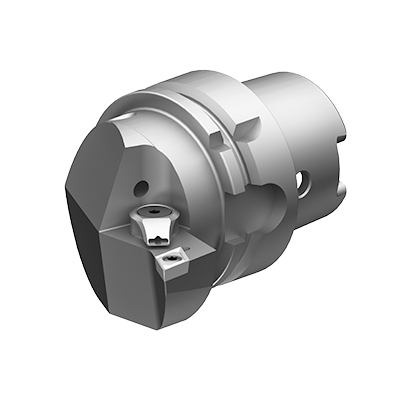

External turningScrew clamping
SDJC L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
- Cooling system: Turning tools for positive inserts feature an adjusted coolant nozzle
| Bestell-Nr. | HSK T | f | D1 min. | A | rechts/links | Wendeplatte | dxf | step |  |
|
| HA0.KDB.LJA.100 | 100 | 63 | 120 | 100 | L | DC . . 11 T3 . . |  |
 |
 |
 |
| HA0.KDB.RJA.100 | 100 | 63 | 120 | 100 | R | DC . . 11 T3 . . | |
|
|
|
