External turning tools
External turningLever lock clamping

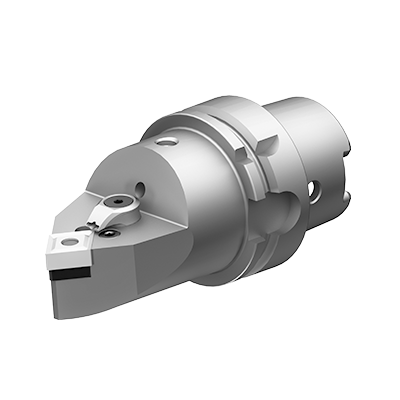

PCMN N
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via toggle lever Type P
- Cooling system: Turning tools with toggle lever-clamping feature an adusted coolant nozzle.
| Bestell-Nr. | HSK T | A | Wendeplatte | dxf | step |  |
|
| HA6.PCD.NMA.100 | 63 | 100 | CN . . 12 04 . . |  |
 |
 |
 |
| HA6.PCE.NMA.100 | 63 | 100 | CN . . 16 06 . . | |
|
|
|
