External turning tools
External turningTop clamping

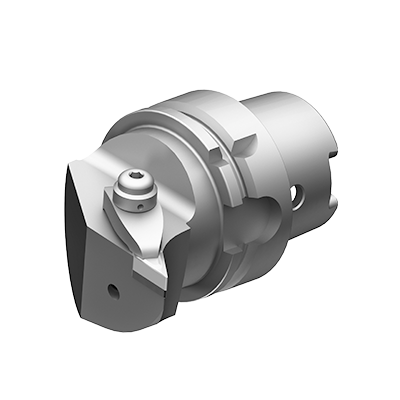

DVUN L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via double-clamping Type D
- Cooling system: Turning tools with double-clamping feature an adjustable high-pressure coolant nozzle
| Bestell-Nr. | HSK T | f | D1 min. | A | rechts/links | Wendeplatte | dxf | step |  |
|
| HA6.KVD.LUA.070 | 63 | 45 | 80 | 70 | L | VN . . 16 04 . . |  |
 |
 |
 |
| HA6.KVD.RUA.070 | 63 | 45 | 80 | 70 | R | VN . . 16 04 . . | |
|
|
|
