External turning tools
External turningTop clamping
DCMN N
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via double-clamping Type D
- Cooling system: Turning tools with double-clamping feature an adjustable high-pressure coolant nozzle
| Bestell-Nr. | HSK T | A | Wendeplatte | dxf | step |  |
|

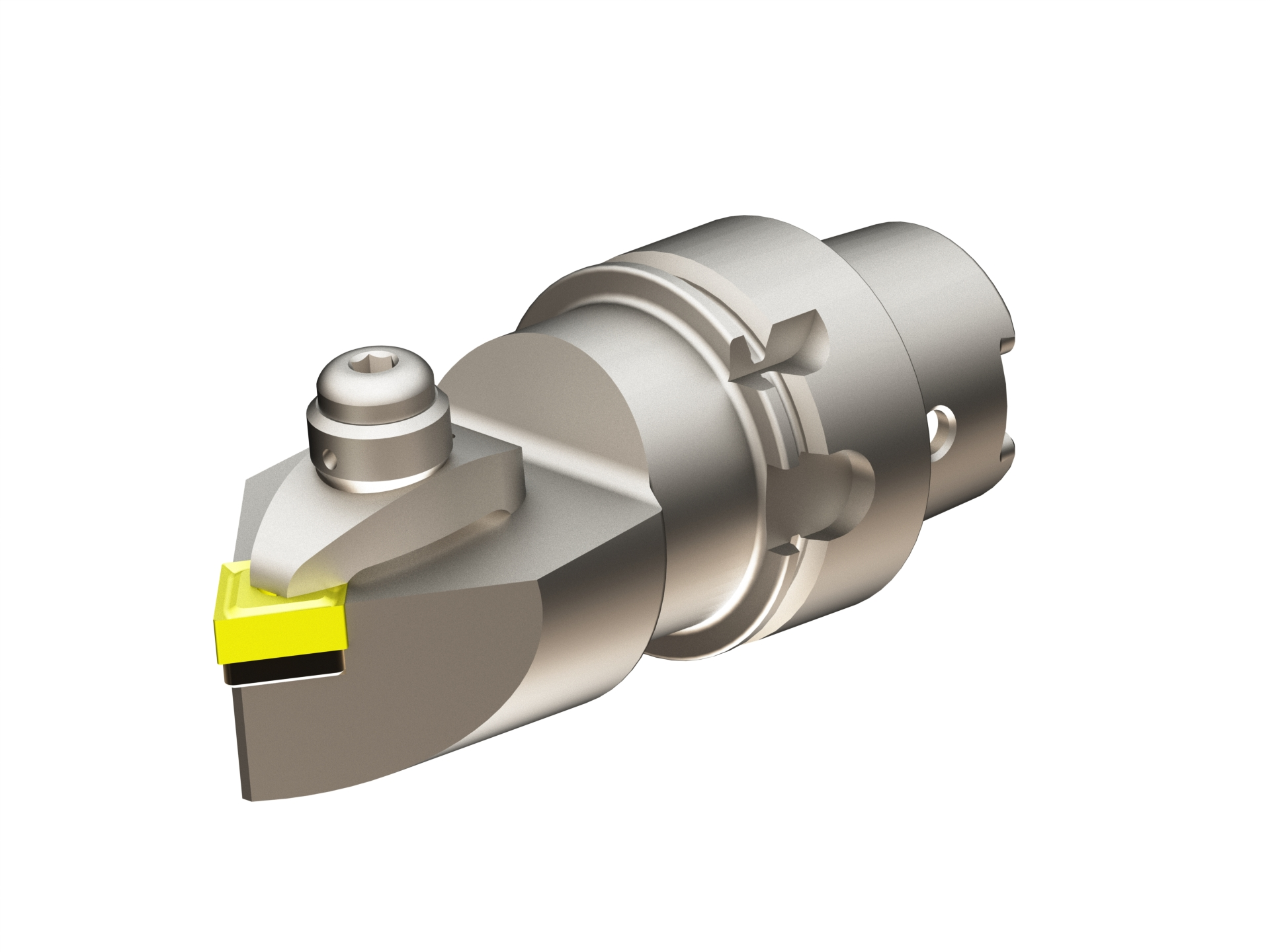

| HA4.KCD.NMA.080 | 40 | 80 | CN . . 12 04 . . |  |
 |
 |
 |
