Reduktionen
| Bestell-Nr. | D | d1 | D2 | d3 | L1 | L | SW/AF | dxf | step |  |
|
| 120.250.201C | 25 | 14 | 20 | 11 | 15 | 30.00 | 22 |  |
 |
 |
 |
| 120.320.201C | 32 | 18 | 20 | 11 | 15 | 30.00 | 27 | |
| ||
| 120.320.201C | 32 | 18 | 20 | 11 | 15 | 30.00 | 27 | |
| ||
| 120.320.251C | 32 | 18 | 25 | 14 | 25 | 40.00 | 27 | |
| ||
| 120.420.201C | 42 | 24 | 20 | 11 | 15 | 35.00 | 36 | |
|
|
|
| 120.420.251C | 42 | 24 | 25 | 14 | 25 | 45.00 | 36 | |
|
|
|
| 120.420.321C | 42 | 24 | 32 | 18 | 25 | 45.00 | 36 | |
|
|
|
| 120.550.201C | 55 | 30 | 20 | 11 | 15 | 35.00 | 46 | |
|
|
|
| 120.550.251C | 55 | 30 | 25 | 14 | 20 | 40.00 | 46 | |
|
|
|
| 120.550.321C | 55 | 30 | 32 | 18 | 25 | 45.00 | 46 | |
|
|
|
| 120.550.421C | 55 | 30 | 42 | 24 | 30 | 50.00 | 46 | |
|
| |
| 120.720.321C | 72 | 40 | 32 | 18 | 25 | 55.00 | 60 | |
|
|
|
| 120.720.421C | 72 | 40 | 42 | 24 | 30 | 60.00 | 60 | |
|
|
|
| 120.720.551C | 72 | 40 | 55 | 30 | 30 | 60.00 | 60 | |
|
|
|
| 120.940.421C | 94 | 50 | 42 | 24 | 30 | 65.00 | 75 | |
|
|
|
| 120.940.551C | 94 | 50 | 55 | 30 | 30 | 65.00 | 75 | |
|
| |

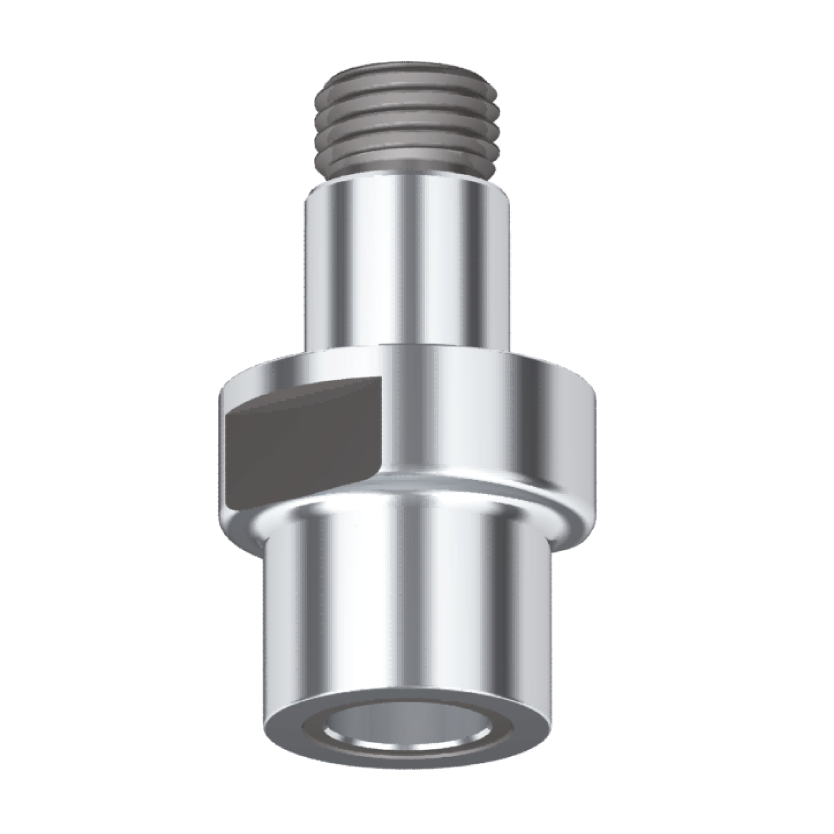

| 120.940.721C | 94 | 50 | 72 | 40 | 45 | 80.00 | 75 | |
|
|
|
