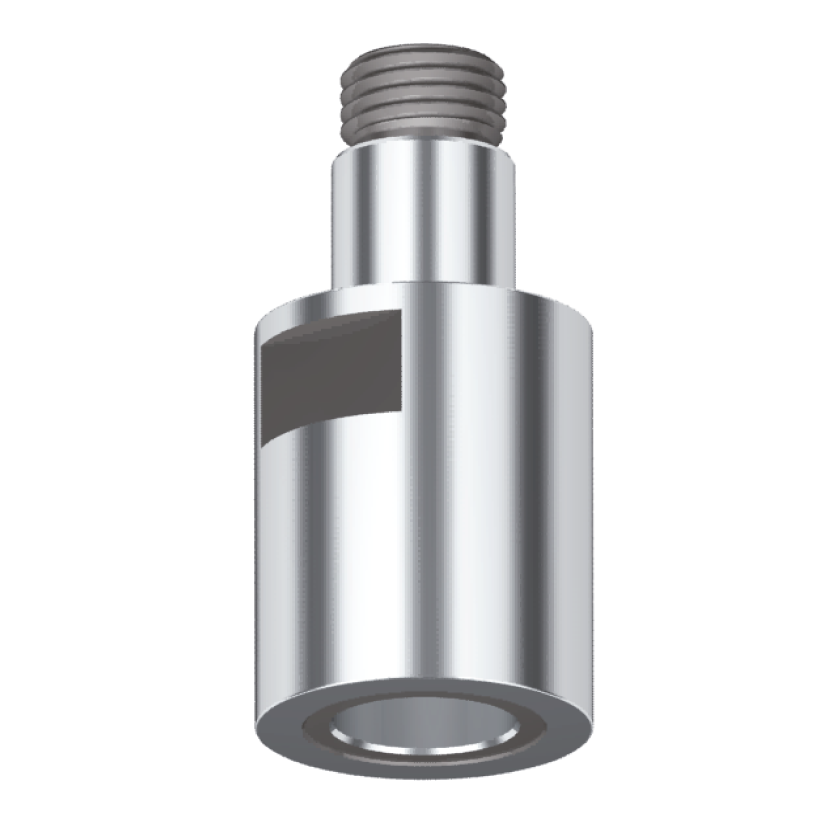

Verlängerungen
| Bestell-Nr. | D | d1 | L | SW/AF | dxf | step |  |
|
| 130.200.001C | 20 | 11 | 25.00 | 17 |  |
 | ||
| 130.200.002C | 20 | 11 | 35.00 | 17 | |
 |
 |
|
| 130.250.001C | 25 | 14 | 30.00 | 22 | |
|
|
|
| 130.250.002C | 25 | 14 | 45.00 | 22 | |
|
|
|
| 130.320.001C | 32 | 18 | 40.00 | 27 | |
|
|
|
| 130.320.002C | 32 | 18 | 60.00 | 27 | |
|
|
 |
| 130.420.001C | 42 | 24 | 50.00 | 36 | |
|
|
|
| 130.420.002C | 42 | 24 | 80.00 | 36 | |
|
|
|
| 130.550.001C | 55 | 30 | 70.00 | 46 | |
|
|
|
| 130.550.002C | 55 | 30 | 105.00 | 46 | |
|
| |
| 130.720.001C | 72 | 40 | 75.00 | 60 | |
|
|
|
| 130.720.002C | 72 | 40 | 135.00 | 60 | |
|
|
|
| 130.940.001C | 94 | 50 | 100.00 | 75 | |
|
|
|
| 130.940.002C | 94 | 50 | 180.00 | 75 | |
|
|
|
