Verlängerungen
| Bestell-Nr. | WH | WH1 | D | d1 | A | dxf | step |  |
|
| A64.020.020.025 | WH1 | WH1 | 20.00 | 11 | 25 |  |
 |
 | |
| A64.020.020.035 | WH1 | WH1 | 20.00 | 11 | 35 | |
|
 | |
| A64.025.025.030 | WH2 | WH2 | 25.00 | 14 | 30 | |
|
| |
| A64.025.025.045 | WH2 | WH2 | 25.00 | 14 | 45 | |
|
| |
| A64.032.032.040 | WH3 | WH3 | 32.00 | 18 | 40 | |
|
| |
| A64.032.032.060 | WH3 | WH3 | 32.00 | 18 | 60 | |
|
| |
| A64.039.039.050 | WH4 | WH4 | 39.00 | 22 | 50 | |
|
| |
| A64.039.039.080 | WH4 | WH4 | 39.00 | 22 | 80 | |
|
| |
| A64.050.050.050 | WH5 | WH5 | 50.00 | 28 | 50 | |
 |
|
|
| A64.050.050.070 | WH5 | WH5 | 50.00 | 28 | 70 | |
|
| |
| A64.050.050.100 | WH5 | WH5 | 50.00 | 28 | 100 | |
|
|
|
| A64.063.063.075 | WH6 | WH6 | 63.00 | 36 | 75 | |
|
| |
| A64.063.063.135 | WH6 | WH6 | 63.00 | 36 | 135 | |
|
|
|
| A64.080.080.100 | WH8 | WH8 | 80.00 | 36 | 100 | |
|
|
|

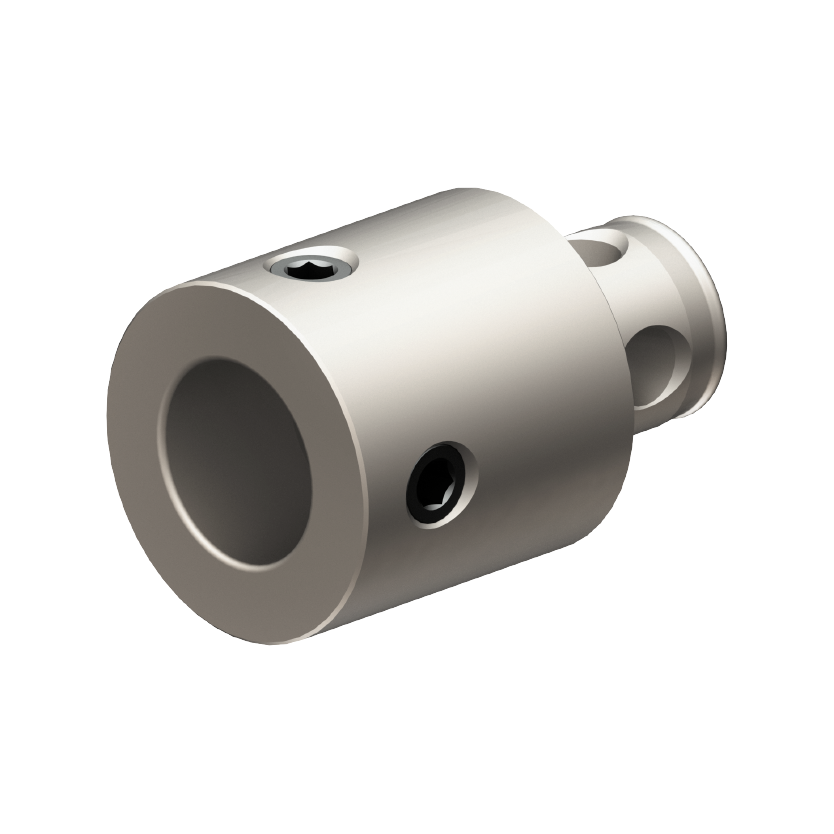

| A64.080.080.180 | WH8 | WH8 | 80.00 | 36 | 180 | |
|
|
|
