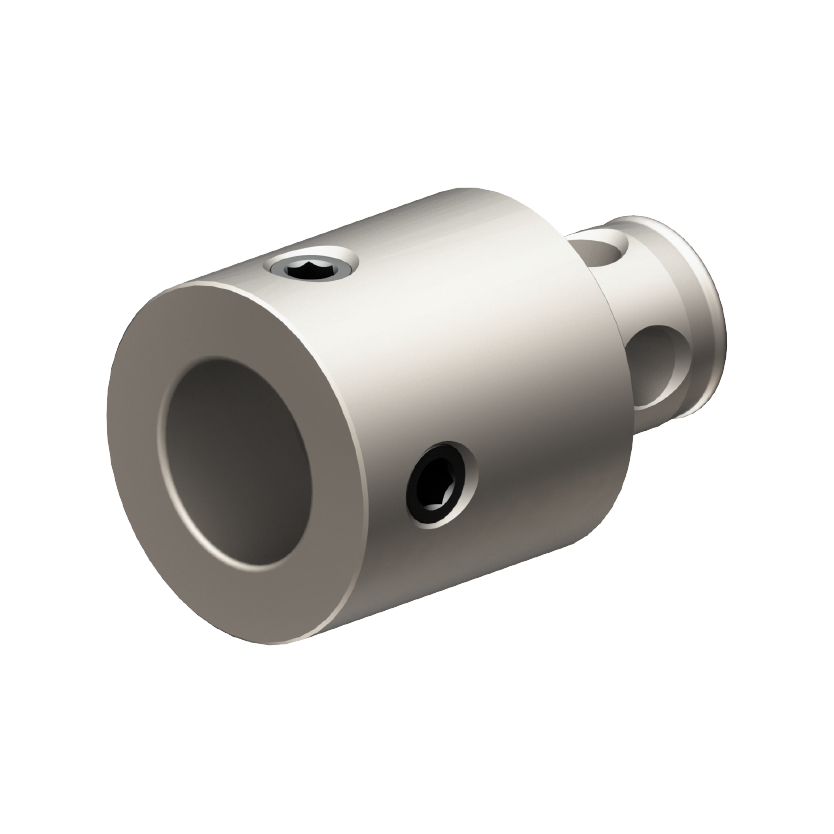

Verlängerungen
| Bestell-Nr. | ST | ST1 | D1 | d1 | A | dxf | step |  |
|
| 164.020.020.020 | ST1 | ST1 | 20 | 11 | 20 |  |
 |
 |
 |
| 164.020.020.030 | ST1 | ST1 | 20 | 11 | 30 | |
|
|
 |
| 164.025.025.030 | ST2 | ST2 | 25 | 14 | 30 | |
|
|
|
| 164.025.025.045 | ST2 | ST2 | 25 | 14 | 45 | |
|
|
|
| 164.032.032.030 | ST3 | ST3 | 32 | 18 | 30 | |
|
|
|
| 164.032.032.045 | ST3 | ST3 | 32 | 18 | 45 | |
|
|
|
| 164.039.039.040 | ST4 | ST4 | 39 | 22 | 40 | |
|
| |
| 164.039.039.060 | ST4 | ST4 | 39 | 22 | 60 | |
|
| |
| 164.050.050.060 | ST5 | ST5 | 50 | 28 | 60 | |
|
| |
| 164.050.050.090 | ST5 | ST5 | 50 | 28 | 90 | |
|
|
|
| 164.064.064.060 | ST6+ | ST6 | 64 | 36 | 60 | |
|
|
|
| 164.064.064.100 | ST6+ | ST6+ | 64 | 36 | 100 | |
|
|
|
| 164.090.090.100 | ST7+ | ST7+ | 90 | 46 | 100 | |
|
| |
| 164.090.090.160 | ST7+ | ST7+ | 90 | 46 | 160 | |
|
|
