Aufnahmen

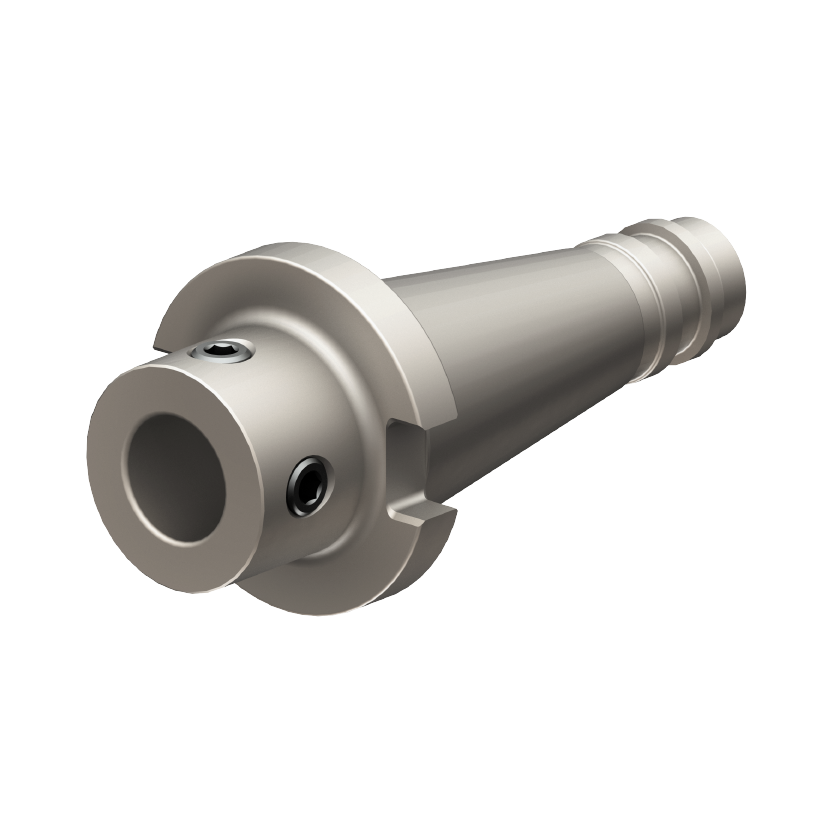

SK 40/50 DIN 2080
| Bestell-Nr. | ISO | System Ø D | L | A | M | dxf | step |  |
|
| 102.400.201 | 40 | 20 | 15 | 26.6 | M16 |  |
 |
 |
 |
| 102.400.202 | 40 | 20 | 40 | 51.6 | M16 | |
|
|
|
| 102.400.251 | 40 | 25 | 25 | 36.6 | M16 | |
|
|
|
| 102.400.252 | 40 | 25 | 55 | 66.6 | M16 | |
|
|
|
| 102.400.321 | 40 | 32 | 25 | 36.6 | M16 | |
|
|
|
| 102.400.322 | 40 | 32 | 65 | 76.6 | M16 | |
|
|
|
| 102.400.421 | 40 | 42 | 30 | 41.6 | M16 | |
|
|
|
| 102.400.422 | 40 | 42 | 80 | 91.6 | M16 | |
|
|
|
| 102.400.551 | 40 | 55 | 40 | 51.6 | M16 | |
|
|
|
| 102.400.552 | 40 | 55 | 100 | 111.6 | M16 | |
|
|
|
| 102.400.721 | 40 | 72 | 60 | 71.6 | M16 | |
|
|
|
| 102.400.722 | 40 | 72 | 120 | 131.6 | M16 | |
|
|
|
| 102.400.941 | 40 | 94 | 60 | 71.6 | M16 | |
|
|
 |
| 102.500.201 | 50 | 20 | 15 | 30.2 | M24 | |
|
|
|
| 102.500.202 | 50 | 20 | 40 | 55.2 | M24 | |
|
|
|
| 102.500.251 | 50 | 25 | 25 | 40.2 | M24 | |
|
|
|
| 102.500.252 | 50 | 25 | 55 | 70.2 | M24 | |
|
|
|
| 102.500.321 | 50 | 32 | 25 | 40.2 | M24 | |
|
|
|
| 102.500.322 | 50 | 32 | 65 | 80.2 | M24 | |
|
|
|
| 102.500.421 | 50 | 42 | 30 | 45.2 | M24 | |
|
|
|
| 102.500.422 | 50 | 42 | 80 | 95.2 | M24 | |
|
|
|
| 102.500.551 | 50 | 55 | 40 | 55.2 | M24 | |
|
|
|
| 102.500.552 | 50 | 55 | 100 | 115.2 | M24 | |
|
|
|
| 102.500.721 | 50 | 72 | 60 | 75.2 | M24 | |
|
|
|
| 102.500.722 | 50 | 72 | 120 | 135.2 | M24 | |
|
|
|
| 102.500.941 | 50 | 94 | 60 | 75.2 | M24 | |
|
|
|
| 102.500.942 | 50 | 94 | 150 | 165.2 | M24 | |
|
|
|
