Brückenwerkzeuge Ø150.0-655.0

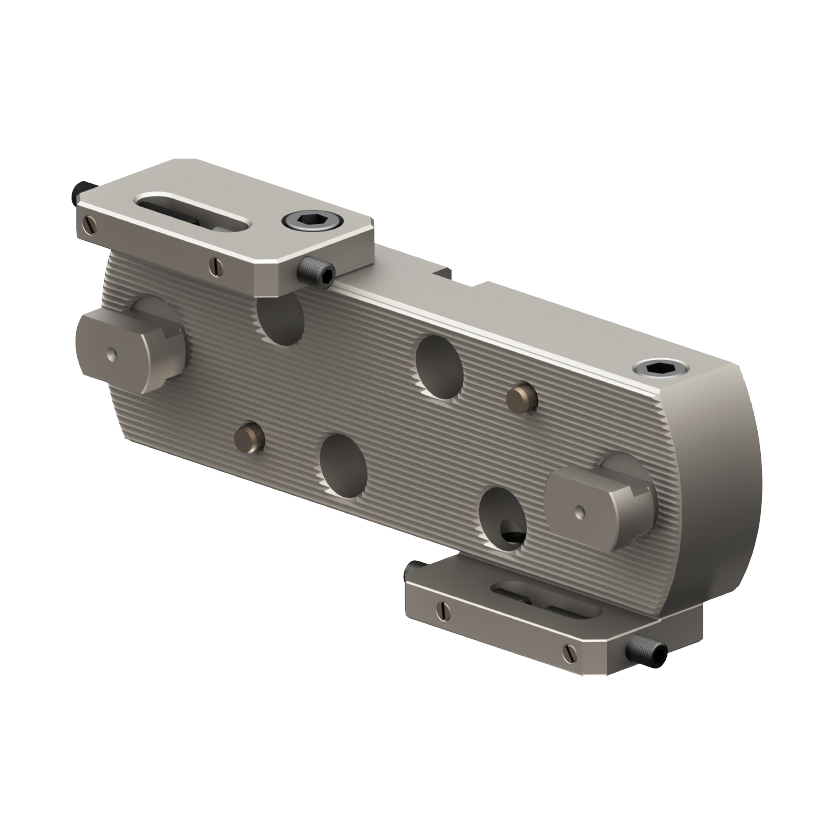

BT-EB Erweiterungs Konsole Ø150-655- Schneidenträger erforderlich
| Bestell-Nr. | BR1 | max Drehzahl | Typ | D | L | dxf | step |  |
|
| V60.130.130.030 | 150 – 205 | 1250 | A | 130 | 30 |  |
 |
 |
 |
| V60.130.180.030 | 200 – 255 | 1000 | A | 180 | 30 | |
|
|
|
| V60.130.230.035 | 250 – 305 | 850 | A | 230 | 35 | |
|
|
|
| V60.130.280.035 | 300 – 355 | 700 | A | 280 | 35 | |
|
|
|
| V60.130.330.040 | 350 – 405 | 600 | A | 330 | 40 | |
|
|
|
| V60.130.380.040 | 400 – 455 | 530 | A | 380 | 40 | |
|
|
 |
| V60.130.430.040 | 450 – 505 | 480 | A | 430 | 40 | |
|
|
|
| V60.130.480.040 | 500 – 555 | 440 | A | 480 | 40 | |
|
|
|
| V60.130.530.050 | 550 – 605 | 400 | A | 530 | 50 | |
|
|
|
| V60.130.580.050 | 600 – 655 | 370 | A | 580 | 50 | |
|
|
|
