Schruppwerkzeuge Ø23.5-153.0
Wendeplattenhalter 90°- für die Verwendung in Zweischneiderköpfen der Serie 142
| Bestell-Nr. | Ø A min. | Ø A max. | Wendeplatte | Zweischneiderkopf | dxf | step |  |
|
| 162.200.006 | 23.5 | 30.5 | CC . .06 02 . . | 142.200.000 |  |
 | ||
| 162.250.006 | 29.5 | 40.1 | CC . .06 02 . . | 142.250.000 | |
| ||
| 162.320.009 | 39.5 | 50.5 | CC . .09 T3 . . | 142.320.000 | |
| ||
| 162.420.009 | 49.5 | 66.5 | CC . .09 T3 . . | 142.420.000 | |
| ||
| 162.550.012 | 65.5 | 87.5 | CN . .12 04 . . | 142.550.000 | |
| ||
| 162.550.112 | 65.5 | 87.5 | CC . .12 04 . . | 142.550.000 | |
 |
 |
|
| 162.720.016 | 86.5 | 115.5 | CN . .16 06 . . | 142.720.100 | |
|
|
|
| 162.720.112 | 86.5 | 115.5 | CC . .12 04 . . | 142.720.100 | |
| ||
| 162.940.016 | 114.5 | 153 | CN . .16 06 . . | 142.940.100 | |
|
|
 |

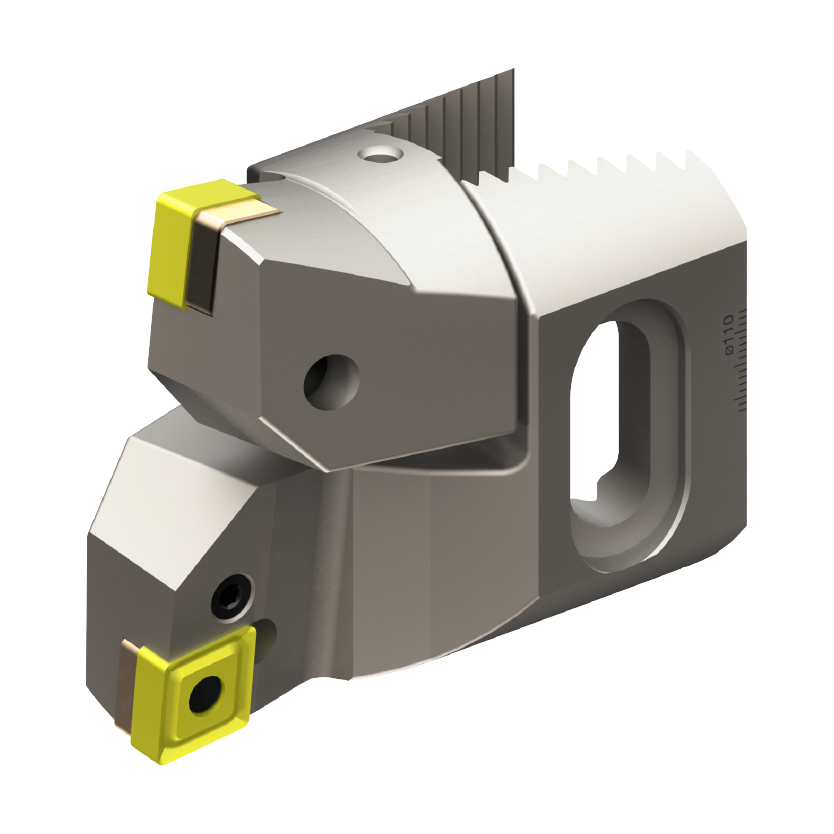

| 162.940.112 | 114.5 | 153 | CC . .12 04 . . | 142.940.100 | |
|
|
|
