Schruppwerkzeuge Ø23.5-153.0

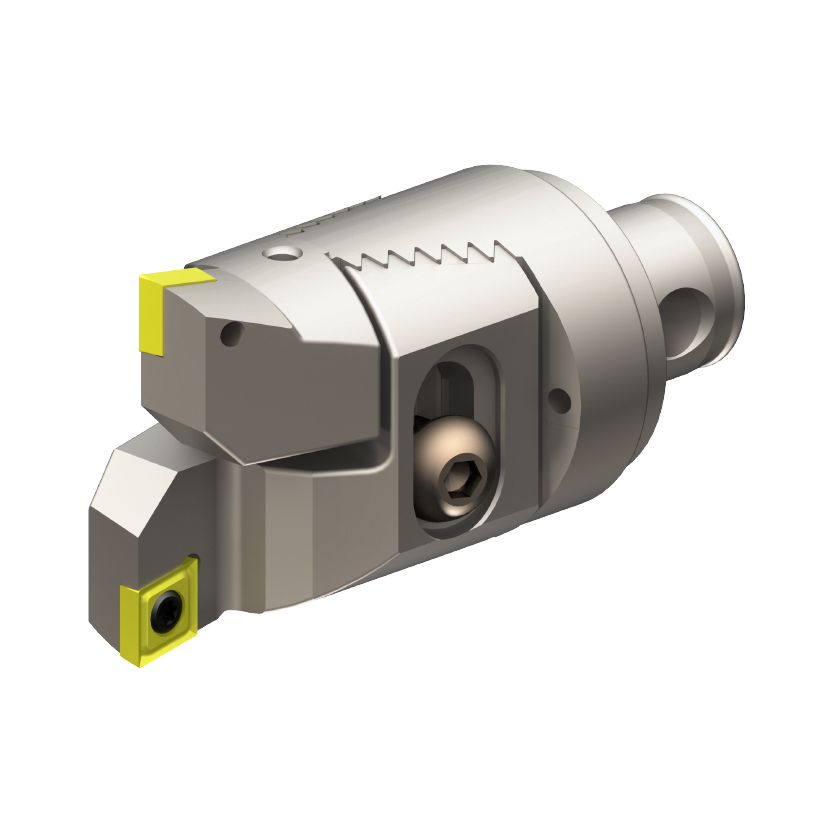

Zweischneiderköpfe Ø 23.5-153- mit Innenkühlung
| Bestell-Nr. | System Ø D | Ø A min. | Ø A max. | L | Wendeplattenhalter | dxf | step |  |
|
| 142.200.000 | 20 | 23.5 | 30.5 | 40 | 162/182/166/167.200.006 |  |
 |
 | |
| 142.250.000 | 25 | 29.5 | 40.1 | 50 | 162/182/166/167.250.006 | |
|
| |
| 142.320.000 | 32 | 39.5 | 50.5 | 65 | 162/182/166/167.320.009 | |
|
 |
|
| 142.420.000 | 42 | 49.5 | 66.5 | 90 | 162/182/166/167.420.009 | |
|
| |
| 142.550.000 | 55 | 65.5 | 87.5 | 115 | 162/182/166/167.550.012/112 | |
|
|
|
| 142.720.100 | 72 | 86.5 | 115.5 | 100 | 162/182/166/167.720.016/112 | |
|
| |
| 142.940.100 | 94 | 114.5 | 153 | 130 | 162/182/166/167.940.016/112 | |
|
|
