Feinbohrwerkzeuge analog / digital Ø23.9-203.1
FBHS Schneidenträger 95°- für die Verwendung in Feinbohrköpfen der Serie FBHS
| Bestell-Nr. | A min | A max | D | Wendeplatte | Torx | dxf | step |  |
|
| T15.011.024.006 | 23.9 | 31.1 | 11 | CC . . 06 02 . . | T7 |  |
 |
 |
 |
| T15.013.031.006 | 30.9 | 40.1 | 13 | CC . . 06 02 . . | T7 | |
|
|
|
| T15.017.040.006 | 39.9 | 51.1 | 17 | CC . . 06 02 . . | T7 | |
|
|
|
| T15.022.051.006 | 50.9 | 67.1 | 22 | CC . . 06 02 . . | T7 | |
|
| |

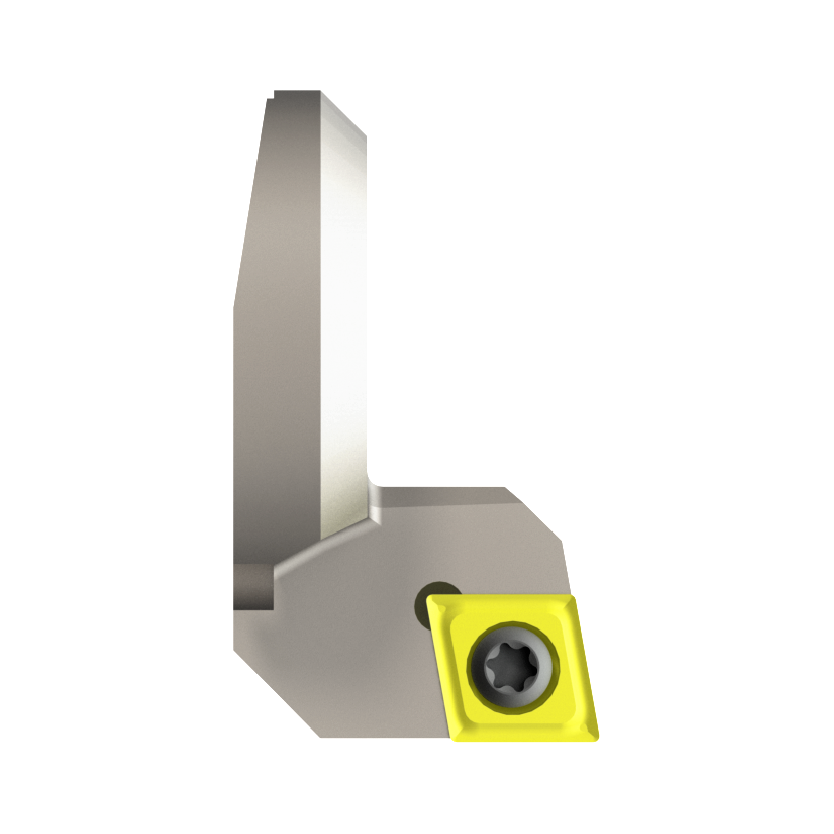

| T15.030.067.009 | 115.9 | 153.1 | 30 | CC . . 09 T3 . . | T15 | |
|
|
|
| T15.030.067.009 | 86.9 | 116.1 | 30 | CC . . 09 T3 . . | T15 | |
|
|
|
| T15.030.067.009 | 66.9 | 87.1 | 30 | CC . . 09 T3 . . | T15 | |
|
|
|
