Micro Ausdrehkopf Ø 0.3 - 19.1
Schneideinsätze Ø 0.3 - 12.1
| Bestell-Nr. | ØD | L2 | Ø d min. | Ø d max. | dxf | step |  |
|
| 273.004.003 | 4 | 1.2 | 0.3 | 0.7 |  | |||
| 273.004.006 | 4 | 2.5 | 0.6 | 1.1 | | |||
| 273.004.010 | 4 | 4 | 1 | 2.3 | | |||
| 273.004.022 | 4 | 6 | 2.2 | 3.3 | | |||
| 273.004.032 | 4 | 10.2 | 3.2 | 4.3 | | |||
| 273.004.039 | 4 | 15.2 | 3.9 | 7.1 | | |||
| 273.007.052 | 7 | 20.3 | 5.2 | 6.3 | | |||
| 273.007.062 | 7 | 20.3 | 6.2 | 7.3 | | |||

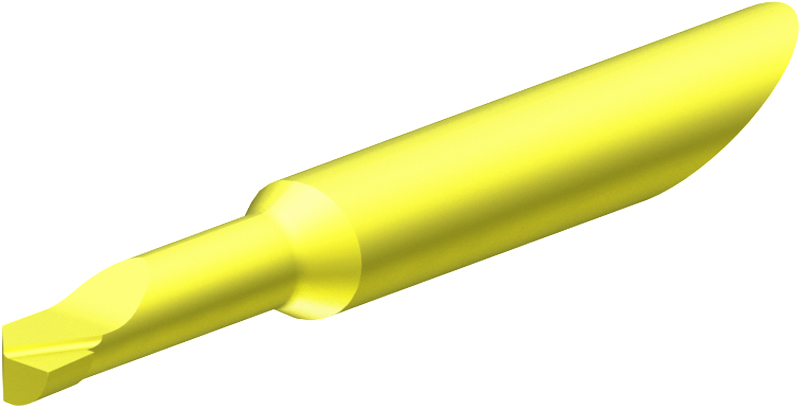

| 273.007.069 | 7 | 25.4 | 6.9 | 12.1 | |
